Description

Description

Description

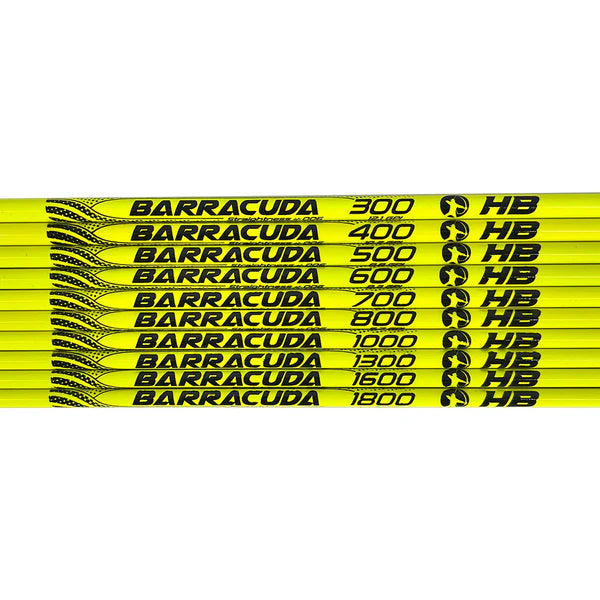

The Henry Bodnik Barracuda Colorline Carbon Arrow Shafts combine two essential requirements:

• For higher draw weights: medium to heavy, yet ultra-thin.

• For lighter draw weights: soft spine values and low overall weight.

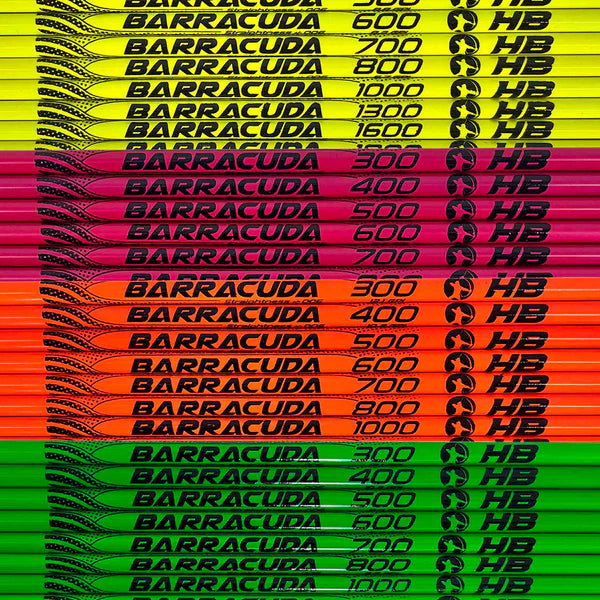

Now available in Neon Yellow, Neon Green, Magenta, and Neon Orange! These eye-catching colors not only look great but also make it easier to find arrows in the field.

The Barracuda Colorline Carbon Arrow Shafts are available in ten spine values (300-1800), suitable for any bow strength and draw length. They are extremely thin (Ø 5-6.5 mm, depending on spine) and particularly stable due to their thick walls.

Instead of insert nocks or inserts, they are shot with push-on nocks, which are placed on factory-installed pin bushings. This makes them more robust and facilitates quick nock replacement. Protector hats for the nock are therefore unnecessary.

Technical data:

• Spine values: 300, 400, 500, 600, 700, 800, 1000, 1300, 1600, 1800

• Length: 32 inches / 81.28 cm

• Weight tolerance: +/- 3.0 gr.

• Spine tolerance: +/- 20

• Inner diameter: .165 inches

• Colors: Neon Yellow, Neon Green, Magenta, and Orange

Whether beginner or professional – the Barracuda Colorline Carbon Arrow Shafts offer quality, precision, and stability. Thanks to the new color options, they can be customized and are easier to find in the field.

Description

All shafts can be cut to length!

The stated value is the pure shaft length.

• The Penthalon Bandit Neon combines quality and price in perfect harmony. With carefully matched spine values and an optimal weight, this carbon shaft offers exceptional performance and durability. Thanks to the thick .245 Easton Standard diameter, spine values of 600, 700, 800, 900, and 1000 are now available, making it ideal for bows with lower draw weights. All shafts are also 32 inches long!


  Product features at a glance:

  • Available spine values: 600, 700, 800, 900, and 1000
  • Inner diameter: .245
  • Quality: 100% Carbon
  • Appearance: Painted Carbon

Description

All shafts can be shortened to length!

Together with our manufacturer, we have achieved a perfect landing in terms of quality and price with the Penthalon Bandit. Spine values ​​and the weight of this great carbon shaft are very tight. The Penthalon Bandit also scores points when it comes to durability! We were also able to achieve spine values ​​of 800, 900 and 1000 in the thick .245 Easton standard diameter. These carbon shafts are now also available for bows with lower draw weights. All shafts are 32 inches long!

The Penthalon Bandit impresses with its quality and a great price!

• Available spine values:  400, 500, 600, 700, 800, 900 and 1000
• ID:Easton Standard, .245
• Quality: 100% Carbon
• Optics: black
• Scope of delivery: Carbon shaft (cams, inserts and tips must be ordered separately)

Description

The new generation of Penthalon Slim Line arrows impresses with its quality and precision. The thin arrow impresses with its flat and precise arrow flight. Thin arrows stabilize significantly faster and therefore lose less energy in the stabilization phase. The thick wall of our Slim Line carbon shafts ensures the necessary weight and durability of these great carbon shafts.

The classic black carbon design is an integral part of the world of carbon arrows. The monochrome look of the black carbon shaft is an expression of simple elegance. The directional accuracy of 006 is an excellent basis for creating great hit images.

• Available spine values: 400, 500, 600, 700, 800, 1000, 1300, 1600 and 2000
• Length: All spine measurements 32 inches
• Concentricity: +/- 006
• Quality: 100% Carbon
• Optics: Carbon black
• Only carbon shaft included (cams, inserts and tips must be ordered separately)

Description

With the carbon shafts of the Penthalon Traditional Line we were able to realize our ideas of design and quality. We have tailored the arrow weight, precision and length of these carbon shafts precisely to the needs of traditional archery. The Penthalon carbon shafts have been tested by archers around the world and found to be excellent. A robust and inexpensive shaft for everyday use in training, competition and hunting.

The price and quality of the Penthalon Traditional Black are a perfect match

• Available spine values: 350, 400, 500, 600, 700 and 800
• Concentricity: +/- 006
• Quality: 100% Carbon
• Optics: Carbon black
• Scope of delivery: Carbon shaft (cams, inserts and tips must be ordered separately)

Description

Penthalon TimberStick!

With the Penthalon carbon shaft series, we went our own way to realise our ideas of design and quality.

We have precisely tailored the arrow weight, precision and length of these carbon shafts to the needs of traditional archery.

A robust shaft for daily use in training, competition and hunting.

In traditional archery in particular, many archers place great value on a natural design, even with carbon shafts.

The wood look of our Timber Stick already looks outrageously real and comes very close to a wooden arrow.

• Available spine values: 400, 500, 600, 700, 800 and 900
• Straightness: +/- 006
• Inner diameter: .245 inch 6,2mm
• Quality: 100% carbon
• Look: timber wood look
• Scope of delivery: carbon shaft

Description

Extremely stable shaft in a beautiful dark wood look.

Top shaft carbon material that is no more expensive than a wooden shaft.

Premium universal carbon shaft for traditional archery in fine carbon with a barkwood look.

The shaft is made of 100% carbon using the cross-winding technique, achieving super fast arrow flight

with the highest precision in concentricity and an optimal shaft weight in grains/inch.

The inner diameter is the standard size 0.244 inches = 6.19 mm, which means they fit the most on the market

Most required and available 5/16″ or 9/32″ inch components (tips, inserts and cams).

Of course, our inserts and tips as well as cams are ideal components for this shaft.

Spine   GPi                                                       AD       Rundl.

Description

Extremely stable shaft in a beautiful dark wood look..

Top shaft carbon material that is no more expensive than a wooden shaft.

Premium universal carbon shaft for traditional archery in fine carbon with a barkwood look.

The shaft is made of 100% carbon using the cross-winding technique, achieving super fast arrow flight

Thin carbon shaft ID 0.166 inch / 4.20 mm, extremely stable, with a beautiful, dark wood look. Each shaft is unique.

The inside diameter is the standard size 0.166 inches = 4.20 mm.
Length: 32 inches / 81.28 cm

Spine 700: Ideal for bows > 30 lbs - 40 lbs
Spine 900: Ideal for bows 24 lbs – 32 lbs
Spine 1100: Ideal for bows 20 lbs - 28 lbs
Spine 1300: Ideal for bows 15 lbs - 25 lbs

Description

6 complete carbon shafts — fletching must be ordered separately.

Universal carbon shaft for traditional 3D, field/forest (Fita) and target archery.

Extremely sturdy shaft with a beautiful dark wood look.

Premium carbon shaft material that costs no more than a wooden shaft.

Ideal for bows with a draw weight of 25 - 40 lbs

The extremely robust carbon shaft is manufactured using cross-wrap technology.

It has an outer diameter of 7.10 mm.

The inner diameter is the standard size of 0.245 inch = 6.20 mm,

Made from 100% cross-wrapped carbon, delivering super-fast arrow flight with the highest precision in straightness,
and an optimal grain/inch weight.

Straightness tolerance: 0.006 mm

Spine 600 length: 32 inch weight: 6.00 grs./inch OD = 7.19 mm

Spine 700 length: 32 inch weight: 5.80 grs./inch OD = 7.10 mm

Spine 800 length: 32 inch weight: 5.20 grs./inch OD = 7.10 mm

The set consists of:

• 6 x Nijora shaft Bark 500,600,700,800,1000 32 inch
• 6 x Nijora insert, aluminum, 13 grain
• 6 x Nijora nock Sig-W- 6.22 mm
• (8 different nock colors: white, yellow, black, fluorescent red, fluorescent green, fluorescent orange — simply state your choice)
• 6 x Nijora stainless steel protective ring 7.15 or 7.3
• 6 x 3D combo point, stainless steel, 60 - 125

Accessories: order fletching directly in the shop.

Description

Premium universal carbon shaft for traditional archery in noble carbon cross wrap traction 6-layer wrap
Beautiful shaft with lots of grain of cedar bark look.

The shaft is made of 100% carbon using cross-winding technology, achieving super-fast arrow flight with the highest precision in concentricity.

The inner diameter is the standard size 0.245 inches = 6.20 mm, which means that the 5/16″ or 9/32″ inch components (tips, inserts and cams) that are most needed and available on the market fit.

Of course, our inserts and tips as well as cams are ideal components for this shaft.

Ps: Each shaft is slightly different in color, just like in nature...

Description

Premium universal carbon shaft not just for traditional archery

In Edel 3K Carbon, high pressing pressure, beautiful appearance. Extremely stable, extra robustly built

with 1 grain / inch more in the basic shaft weight, low weight tolerance max. 3 grains. Covered with protective varnish.

The shaft is made of 100% carbon using 6K tranzial cross-winding technology, achieving super fast arrow flight

with the highest precision in concentricity and an optimal shaft weight in grains/inch.

The inner diameter is the standard size 0.245 inches = 6.22 mm, which means that the ones on the market fit

most needed and available 5/16″ or 9/32″ inch components. These are tips, inserts and cams.

Of course, our inserts and tips as well as cams are ideal components for this shaft.

Description

Premium universal carbon shaft for traditional archery in high-quality carbon, visual optics with protective varnish, highest performance.

The shaft is made of 100% carbon using cross-winding technology, realizes a super fast arrow flight with the highest precision in concentricity, and an optimal shaft weight in grains/inch.

The inner diameter is the standard size 0.245 inch = 6.20 mm, which means that the 5/16″ or 9/32″ inch components that are most needed and available on the market fit. These are tips, inserts and cams.

Of course, our inserts and tips as well as cams are ideal components for this shaft.

Beschreibung

Premium universal conical carbon shaft, sight optics, highest performance.

The Nijora Taperon Carbon shaft has a special winding, it is thinner at the nock end than at the insert side.

Thanks to this newly developed structure with special carbon fibers, the Taperon shaft stabilizes faster and therefore has an even flatter trajectory compared to a normal cylindrical shaft with the same weight and spine values.

The shaft is made of 100% carbon using cross-winding technology, realizes a super fast arrow flight with an even flatter parabolic flight curve, highest precision and an optimal shaft weight grain/inch make it a unique shaft on the European market.

The inner diameter is the standard size 0.245 inch = 6.22 mm, which means that the 5/16 inch components that are most needed and available on the market fit. These are tips, inserts and cams.

Of course, our inserts and tips as well as cams are ideal components for this shaft.

Description

The Penthalon Hunter Extreme stands for three important properties...

• Extremely durable
• Extremely precise
• Extremely powerful

• Available spine values: 300, 350, 400, 500, 600, 700 and 800
• Concentricity: +/- 003
• Quality: 100% K 3 Carbon
• Optics: Cross-linked carbon black
• Scope of delivery: Carbon shaft (cams, inserts and tips must be ordered separately)

Description

Premium universal carbon shaft for Fita, field, forest, compound, 3D archery in fine carbon, sight optics. Extremely stable.

The shaft is made of 100% carbon using cross-winding technology, realizes a super fast arrow flight with the highest precision in concentricity, and an optimal shaft weight in grains/inch.

The inner diameter is the standard size-

Inner diameter (ID) 0.204 inch = 5.20 mm

For this shaft we have a special aluminum insert (30 grain with flange), as well as adhesive tips 60-110 grain and nocks with a diameter of 5.20 mm.

Length: 32 inches

Description

Universal carbon shaft for the entire Fita / field and forest / target / 3D archery.
Extremely stable shaft for beginners and advanced users.

Spine ideal for bow:

• 700: 30 – 45 Lbs
• 800: 28 – 35 Lbs
• 900: 24 – 33 Lbs
• 1000: 22 – 30 Lbs
• 1100: 18 – 26 Lbs
• 1200: 16 – 26 Lbs

The thin 100% carbon shaft is made using cross-winding technology.

The inner diameter is the standard size 0.166 inches = 4.22 mm, which means that the 4.22 mm components most needed and available on the market fit (adhesive tips without inserts and plug-in cams).
Of course, our tips, inserts and cams are ideal components for this high class shaft.

Description Please note this is the Pro series

Universal carbon shaft for traditional archery.

The thin 100% carbon shaft is manufactured using cross-winding technology.
It has an outer diameter of 5.30 mm up to max. 6.02 mm depending on the spine value.

The inner diameter is the standard size of 0.166 inch = 4.22 mm.
This means the most commonly needed and available 4.22 mm components on the market fit.

These are glue-on tips without insert and push-in nocks.
Of course our tips, inserts and nocks are ideal components for this high class shaft.

Made from 100% cross-wound carbon, it delivers an ultra-fast arrow flight with maximum precision in straightness and an optimal weight in grains/inch.

Shaft diameter: standardized inner 4.22 mm / outer 5.40-6.02 mm depending on the spine value.

For breakoff tips without insert for direct gluing into the shaft and push-in nocks with aluminum insert or for direct insertion into the shaft.

Straightness accuracy: 0.003 mm

Description

Onawa Pro XT 3.2 – Spine 500 – 600 – 700 – 800
Premium lightweight shaft in spine 500, 600, 700 and 800 with ID 0.125″ / 3.20 mm

Premium high-class carbon shaft made from 10-layer lightweight MS carbon using cross-winding technology.
The latest world-market carbon with 40 tons of winding press pressure.

Outer diameter:
4.90 mm (Spine 500) – 4.75 mm (Spine 600) – 4.60 mm (Spine 700) – 4.55 mm (Spine 800)

The inner diameter is the standard size 0.125″ / 3.20 mm.
Ideal for this are our new glue-in points ID 3.20 mm (break off in 120-110-100 grain) and the special aluminum pin ID 3.20 mm / to 3.20 mm.

Made from 100% cross-wound carbon, the shaft delivers ultra-fast arrow flight with maximum straightness precision and an optimal weight in grains/inch.

Straightness accuracy: 0.001″

Special feature:
12 shafts always selected (weight and spine).
± max 1.5 grain within a bundle of 12 and max. ± 10 in spine value

Technical data:

Spine 500
Length: 32 inches
Total weight: 215-217 grain (32 inches)
Weight: 6.80 grain/inch
OD = 4.95 mm
ID = 3.20 mm / 0.125 inch

Spine 600
Length: 32 inches
Total weight: 187-189 grain (32 inches)
Weight: 5.90 grain/inch
OD = 4.75 mm
ID = 3.20 mm / 0.125 inch

Spine 700
Length: 32 inches
Total weight: 171-173 grain (32 inches)
Weight: 5.40 grain/inch
OD = 4.60 mm
ID = 3.20 mm / 0.125 inch

Spine 800
Length: 32 inches
Total weight: 158-160 grain (32 inches)
Weight: 5.00 grain/inch
OD = 4.55 mm
ID = 3.20 mm / 0.125 inch

Description

Weight: 500 spine 600 spine 700 spine 800 spine

6.5 grain/inch 5.9 5.6 5.2

Outer diameter: 7.35 mm 7.23 mm 7.07 mm 7.03 mm

Description

Model: Nijora Black Junior 1500 or 1800 Spine

Ideal for our young archers, and bows with low draw weight!

Universal carbon shaft for the entire Fita / field and 3D archery range.

Lightweight yet very robust.

Extremely stable shaft, not just for beginners but also for competition archers.

Ideal for bows from 10 lbs - 25 lbs

The thin 100% carbon shaft is manufactured using cross-winding technology.

It has an outer diameter of 5.00 mm.

The inner diameter is the standard size 0.166 inches = 4.20 mm;
this means it fits the 4.20 mm components most commonly needed and available on the market. Lightweight shaft.

These are glue-on points without insert, and push-in nocks.
Naturally, our points, inserts and nocks are ideal components for this shaft.

Made from 100% cross-wound carbon, it delivers super-fast arrow flight with the highest precision in straightness.

For newly developed breakoff points in 80-70-60 grain without insert, for direct gluing
into the shaft, and push-in nocks with aluminum insert or for direct insertion into the shaft.

Length 32 inch; ideal for tuning: straightness accuracy: 0.006 mm

Description

Nijora Songan for all archery disciplines; 3D, FITA, field/forest, indoor…

Extremely stable shaft for beginners and advanced archers.

Top-quality carbon shaft material that doesn't have to cost more than a wooden shaft, in proven Nijora quality.

Spine 500 ideal for bows of 35-50 lbs

Spine 600 ideal for bows of 30–40 lbs
Spine 700 ideal for bows of 25–35 lbs
Spine 800 ideal for bows of 20–30 lbs

Spine 1000 ideal for bows of 20-25 lbs

The extremely robust carbon shaft is manufactured using cross-wrap technology.

The inner diameter is the standard size of 0.245 inches = 6.22 mm.
Suitable for all our inserts from 13 grain to 100 grain and 6.22 mm push-in nocks.

Made from 100% cross-wrapped carbon, it delivers extremely fast arrow flight with maximum precision in straightness and an optimal grain/inch weight.

Length:
32 inches / 81.28 cm (Spine 500, 600, 700)
31 inches / 78.74 cm (Spine 800)

Straightness tolerance: 0.006 mm

Description Attention it is the Pro-X series

Premium High Class Carbon Schafte in 10 Lager Multilayer light wight MS Carbon !

100% carbon material, shaft is made using cross wrapping technology.

Outer diameter of 5.70 mm with 500 spine value.

The inner diameter is the standard size 0.166 inches = 4.20 mm, so all required and available 4.20 mm components fit

These are adhesive tips break off 100-90-80-70

Made of 100% cross-wound carbon, realizes a super fast arrow flight with the highest

Precision in concentricity and an optimal grain/inch weight.

Concentricity: proX : better than : 0.003 mm
Special feature:

• 12 shafts always selected weight and spine.
• +/- max. 1.5 grain in a 12-pack, and in the spine value max. +/- 10

Length: 32 inches

Spine         500         600         700         800

Weight : 6.60 grs 5.90 grs 5.20 grs 5.30 grs /inch

Od. =        5,70 mm 5.45 mm 5.20 mm5,19 mm

ID.   = 4.20 mm / 0.166 inch

Description

Premium universal carbon shaft for archery with the Compound, bare bows and other bows that like light shafts.

Applications: 3 D, field-forest disc made of high-quality carbon, extremely stable, low weight tolerance max. 2 grain with 12 shafts!

The shaft is made of 100% carbon using 3K cross-winding technology, plain finish.

With it you can achieve super fast arrow flight.
Spine 400 for 50-65 lbs
Spine 500 for 40-55 lbs
Spine 600 for 35-45 lbs

The inner diameter is the standard size 0.245 inches = 6.22 mm, which means that they fit most on the market

required and available 5/16″ or 9/32″ inch components (tips, inserts and cams).

Of course, our inserts and tips as well as cams are ideal components for this shaft.

Description

Premium universal linear two sides, carbon shaft, 3K / twill fabric, with beautiful colorful 4 color print.
The newly developed Nijora Yona Premium Editioncarbon shaft has a special

3K cross winding 90-60 consisting of 8-layer carbon layer fabrics.

The structure of the shaft is of course designed for all types of bows.
E.g.: Recurve bows, bare bows, longbows, compound – depending on the coordination!

Spine values suitable for bows:
400: 40 – 70 Lbs   500: 35 – 60 Lbs   600: 30 – 50 Lbs   700: 25 – 45 Lbs
800: 20 – 35 Lbs

These 30 tons of premium carbon layers are pressed/wound at very high pressure and the residence time in the

Curing oven is slightly longer than standard carbon shaft production.
Thanks to this newly developed structure, with the latest 30 tons of 3K Twin Carbon fibers available on the market

are pressed together at different angles, the Nijora Yona shaft gets a linear spine over the entire shaft, where almost no spline can be noticed. A special feature!! The Yona pro is very robustly wound, slightly heavier than standard light weight shafts, and therefore stabilizes very quickly when it comes out of the bow with high acceleration pressure speed goes.
This gives it an evenflatter trajectorycompared to a normal standard wound cylindrical shaft with the same weight and spine values.
The Yona shaft is a thin full carbon shaft, hand-ground in 8 multilayer technology: inner diameter linear ID 0.245 inch/ 6.22 mm.
The outer diameter depending on the spine 800-400 ranges from 7.55 mm to 7.10 mm.
The shaft is made of 100% carbon in 8 layers of special 3K Twin fabric   using cross wrapping technology, it creates a

super-fast arrow flight with a flatter parabolic flight curve, maximum precision, and an optimal shaft weight

Grain/inch make it a unique shaft on the archery market.

Description

Production 1-3 working days

We build your arrows!

- cutting the shafts

-gluing in inserts or tips

-Please specify the weight for break up tips.

-Attaching protector rings

-gluing on the selected feathers

-application of cresting

-Insert cam

-installation of spring lock

Please select all components in the shop!

If you want to build 6 arrows, please also buy the 6 arrows here.

 If you have any questions, please always include your telephone number.

Description:

Penthalon Bandit Slim Line Neon – Precision Meets Visibility

With the Bandit Slim Line Neon, you get all the advantages of the proven Slim Line technology – now combined with eye-catching, luminous colors! The thin design ensures a particularly flat, fast, and stable arrow flight. Due to rapid stabilization, the arrow loses less energy – for more precise hits and a more consistent shooting behavior.

At the same time, the Bandit Slim Line Neon impresses with its high robustness.

The colored, lacquered carbon not only makes this shaft an optical highlight but also ensures excellent visibility in the target or in the field. Perfect for everyone who values performance and retrievability!

Product features at a glance:

• Available spine values: 600, 700, 800, 1000, 1300, 1600

• Length: All spine values 32 inches

• Quality: 100% Carbon

• Appearance: Lacquered Carbon

• Colors: Yellow, Red, Orange, White, Green, Blue, and Purple

• Scope of delivery: Carbon shaft only (nocks, inserts, and points must be ordered separately)
